Product Description

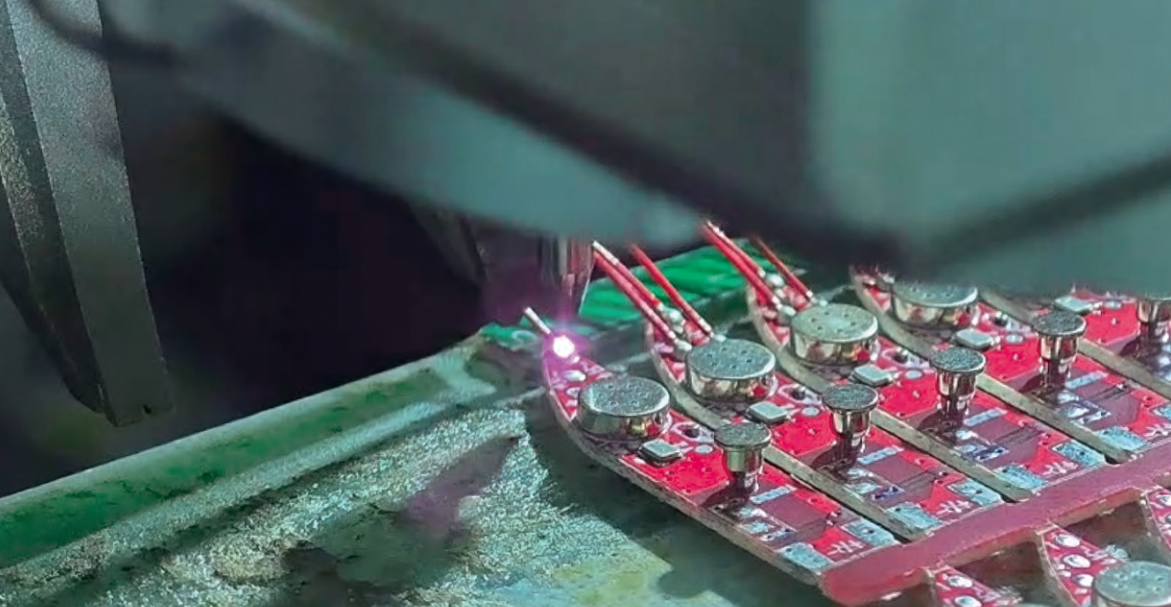

Core Parameters
220V power, 3600–4800 pcs/h, supports 250×250mm panels

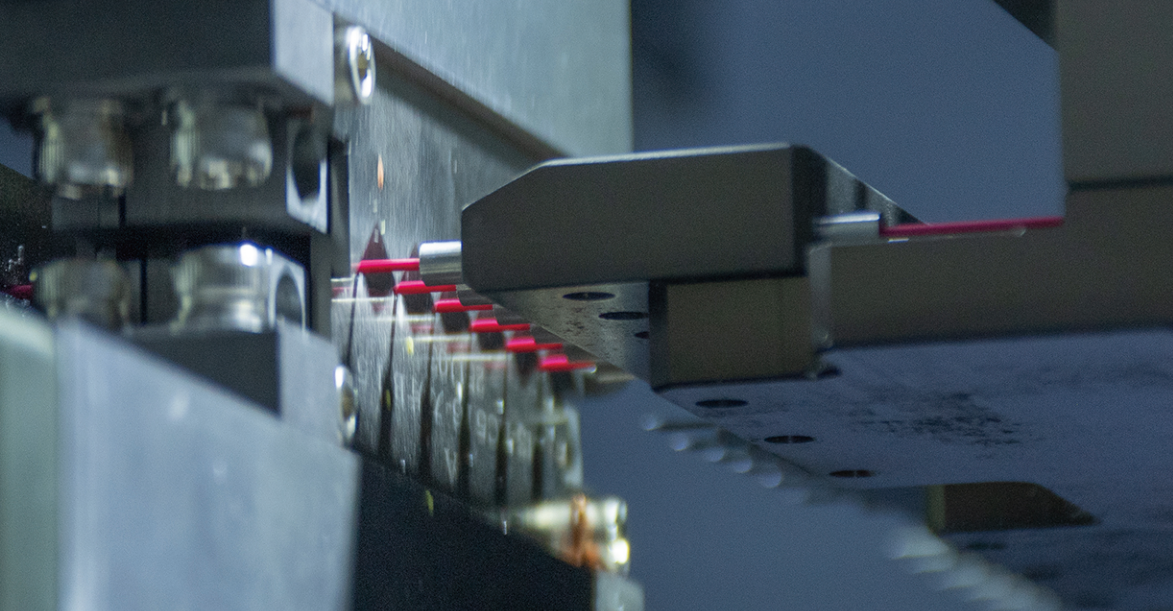

Equipment Functions
Integrated auto wire feeding, stripping, cutting, tin dipping & soldering

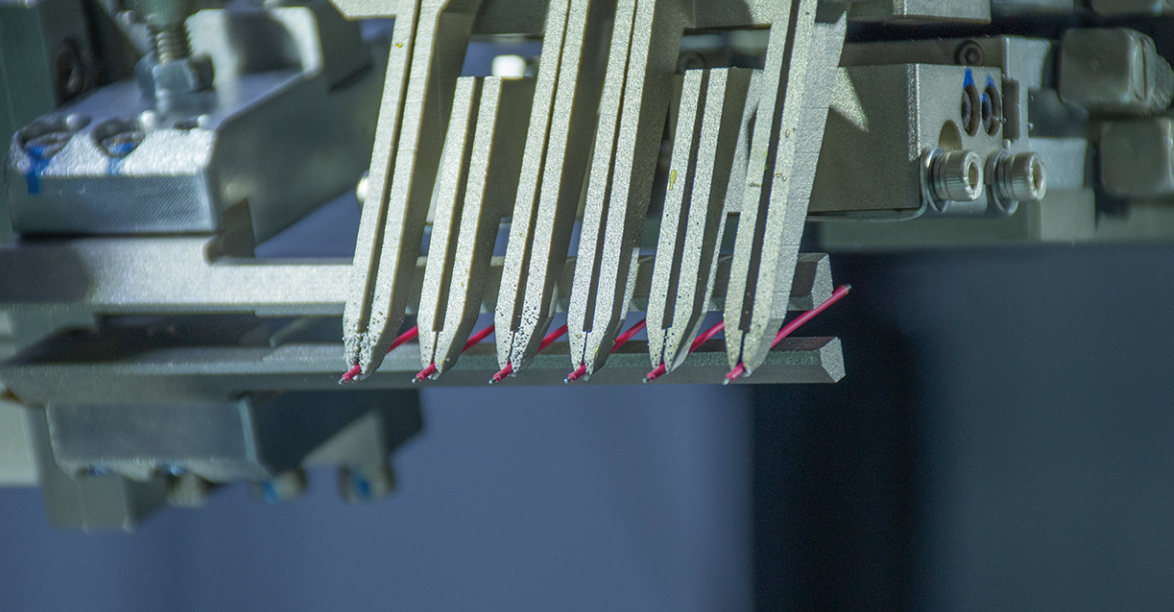

Advantages
Fast changeover, recipe storage, quick fixture swap, multi-point simultaneous soldering

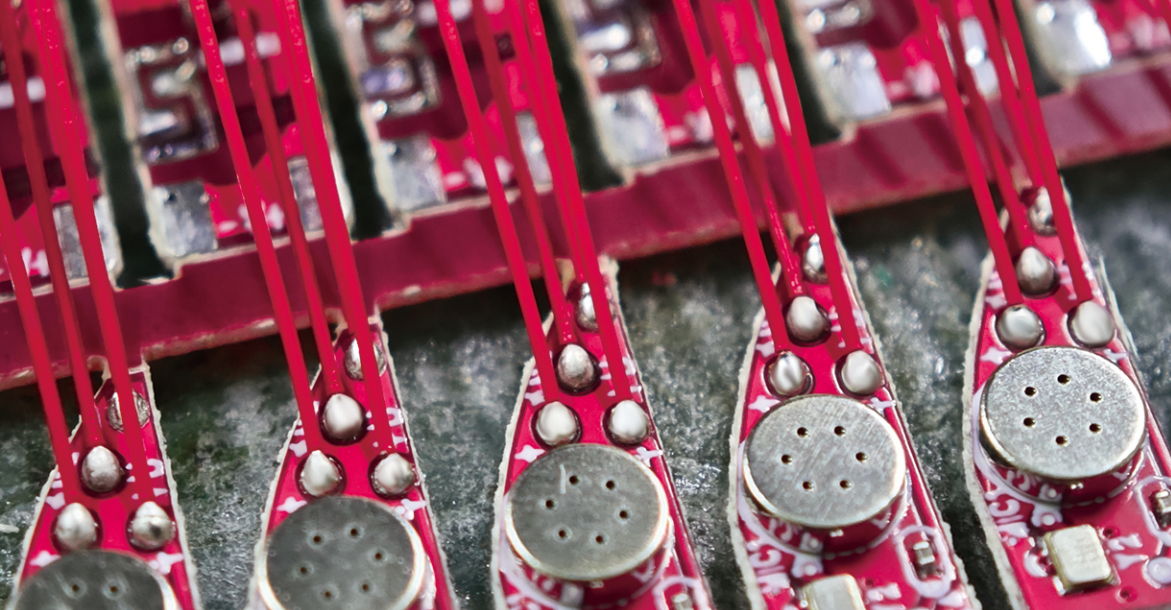

Applicable Industries
Automotive electronics, earphones, lithium batteries; one-stop soldering solution
Equipment Specifications
| No. | Item | Content | Remarks |
|---|---|---|---|
| 1 | Machine Type | Floor-standing mobile unit | |
| 2 | Working Conditions | a. Rated Voltage: AC220V-50Hz b. Rated Power: 2.7kw (estimated) c. Ambient Temp: -5~42°C d. Air Pressure: 0.4~0.7Mpa | Optional auto loading & unloading a. Magazine type b. Fixture type |
| 3 | Capacity | 3600–4200 wires/h (4 heads) | |
| 4 | Labor | 1 operator, manages multiple machines | Optional for ≤4 heads |
| 5 | Dimension | 1250×2900×1950mm |
